10kva Site Transformer Single Phase

10kva Site Transformer Single Phase

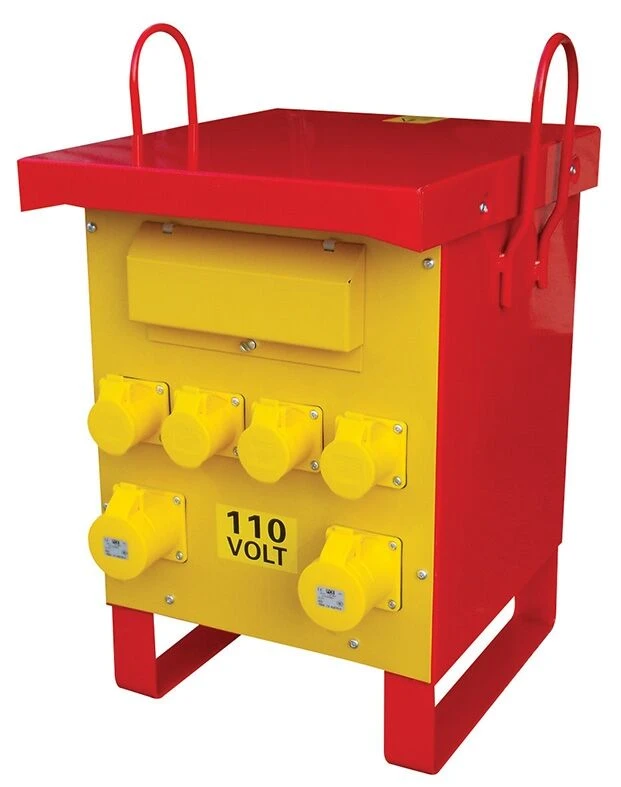

This 10kva Single Phase Site Transformer has a robust heavy duty case conforming to IP44 with two carry handles and mounted on skids.

Transformer:
– 10.0kva continuous rated isolating transformer
– Input 230v 1-phase @ 40 amps
– Output 110 volts Centre tapped to Earth (55-0-55V) @ 90 amps
– Insulation class B
– Frequency 50/60hz

Sockets:
– 4 x 110v 16 amp and 2 x 110v 32 amp 2P+E IP44 rated to BS4343, CEE17, IEC309, 1-2

Protection:
– Input: 40 amp 2 pole type D MCB
– Output: 2 x 16 amp, 2 x 32 amp and 2 pole type ‘D’ MCBs
– All housed under metal IP44 window

Dimensions:
– H660mm x D440mm x W420mm
– Weight: 66kg
