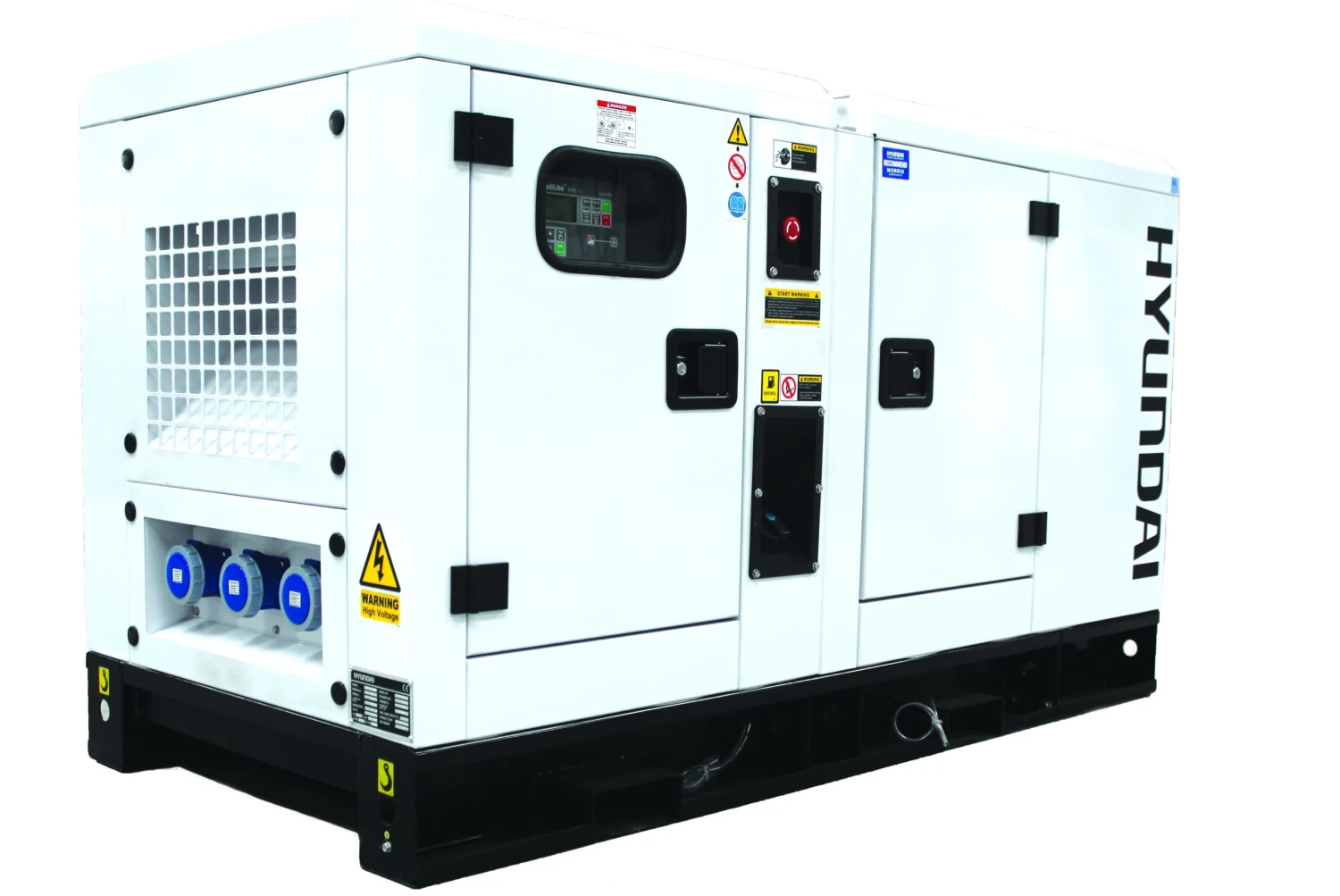

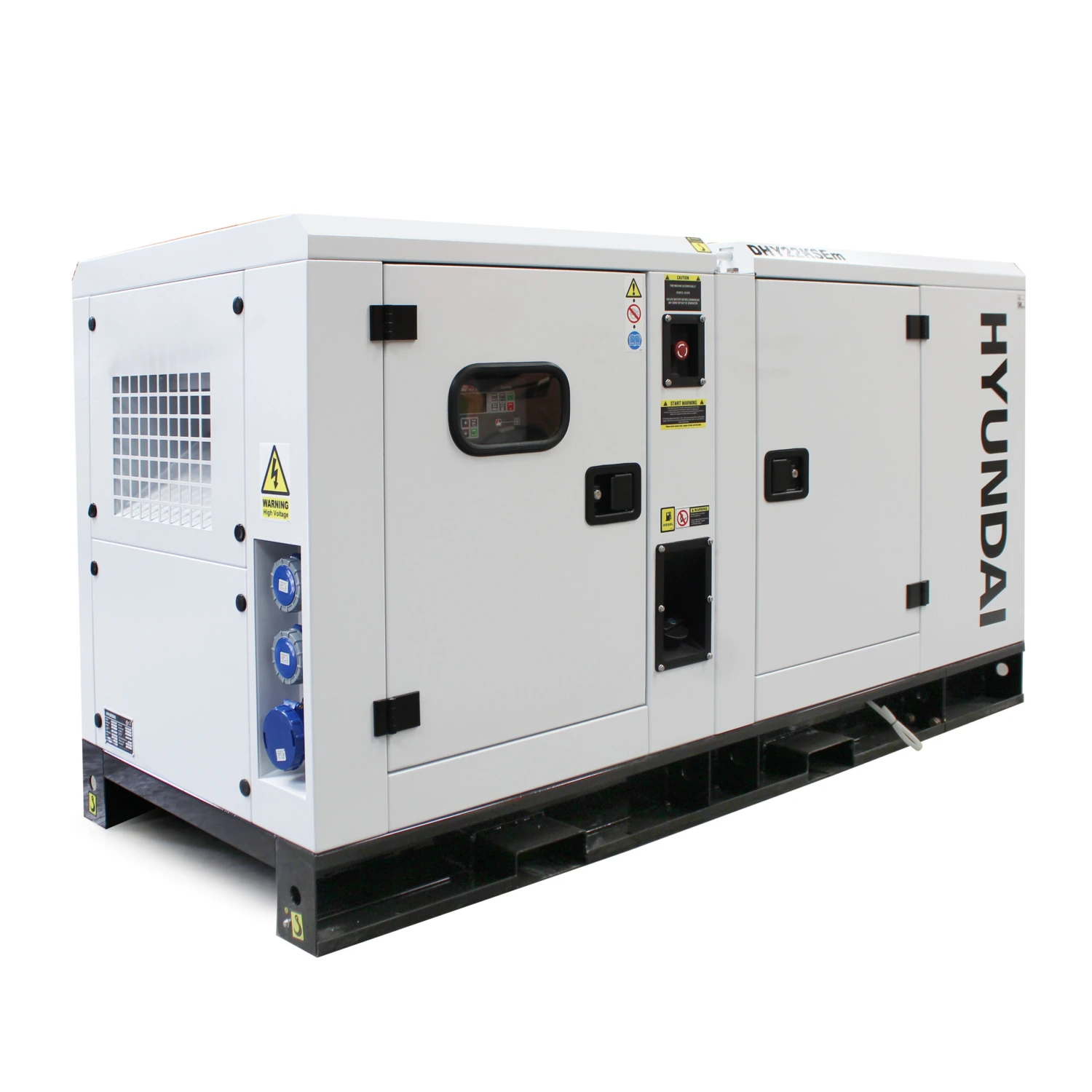

Hyundai DHY22KSEm Silenced Diesel Generator 22kW/27.5kVA

Hyundai DHY22KSEm Silenced Diesel Generator 22kW/27.5kVA

This diesel generator would be suitable for powering a large home or office, or a number of site cabins on a construction site, using it’s powerful 27.5kVA output with a single phase supply. Running at 1500rpm it is a very low stressed generator and has a very long lifespan, as the rev rate of the engine is typically half that of a conventional diesel generator of this size.

All standard Hyundai 1500rpm diesel generators above 15kw are designed to be used as stationary generators for standby or prime power supply. The DHY22KSEm Diesel Generator is part of the Hyundai silenced range, where due to the weatherproof acoustic body, large exhaust and the the economical engine, the noise levels whilst running are kept to a minimum, making for a very quiet run considering the size and output.

All Hyundai 1500rpm diesel generator sound proof canopies undergo an anti-corrosion painting process called electrophoretic painting. This process ensures all areas of the canopy have an evenly applied thickness of paint, ensuring maximum corrosion protection.

As with other models in the Hyundai range, the brushless AVR alternator produces a smooth power output, has a digital control panel, offering accurate overload and engine protection and includes a large base-level fuel tank, which is easily filled up from the outer shell of the generator, and makes for an extended run due to it’s volume.

Specifications:

• Engine Type: HY4100
• No Of Cylinders: 4
• Displacement: 3298cc
• Cooling Method: Water
• Speed: 1500rpm
• Voltage Regulation Method: AVR
• Rated kVA: 25kVA
• Max/Cont Current (a): 95/87
• Frequenzy (Hz): 50Hz
• Connection Method: 3 x 230V/32A & Busbar
• Battery Type (v/Ah): 1 x 12/60
• Dimensions: 2200mm x 950mm x 1240mm (L x W x H)
• Weight: 870kg
• 2 Years manufactures warranty
