Hyundai DHY28KSEm Silenced Diesel Generator 28kW/35kVA

Hyundai DHY28KSEm Silenced Diesel Generator 28kW/35kVA

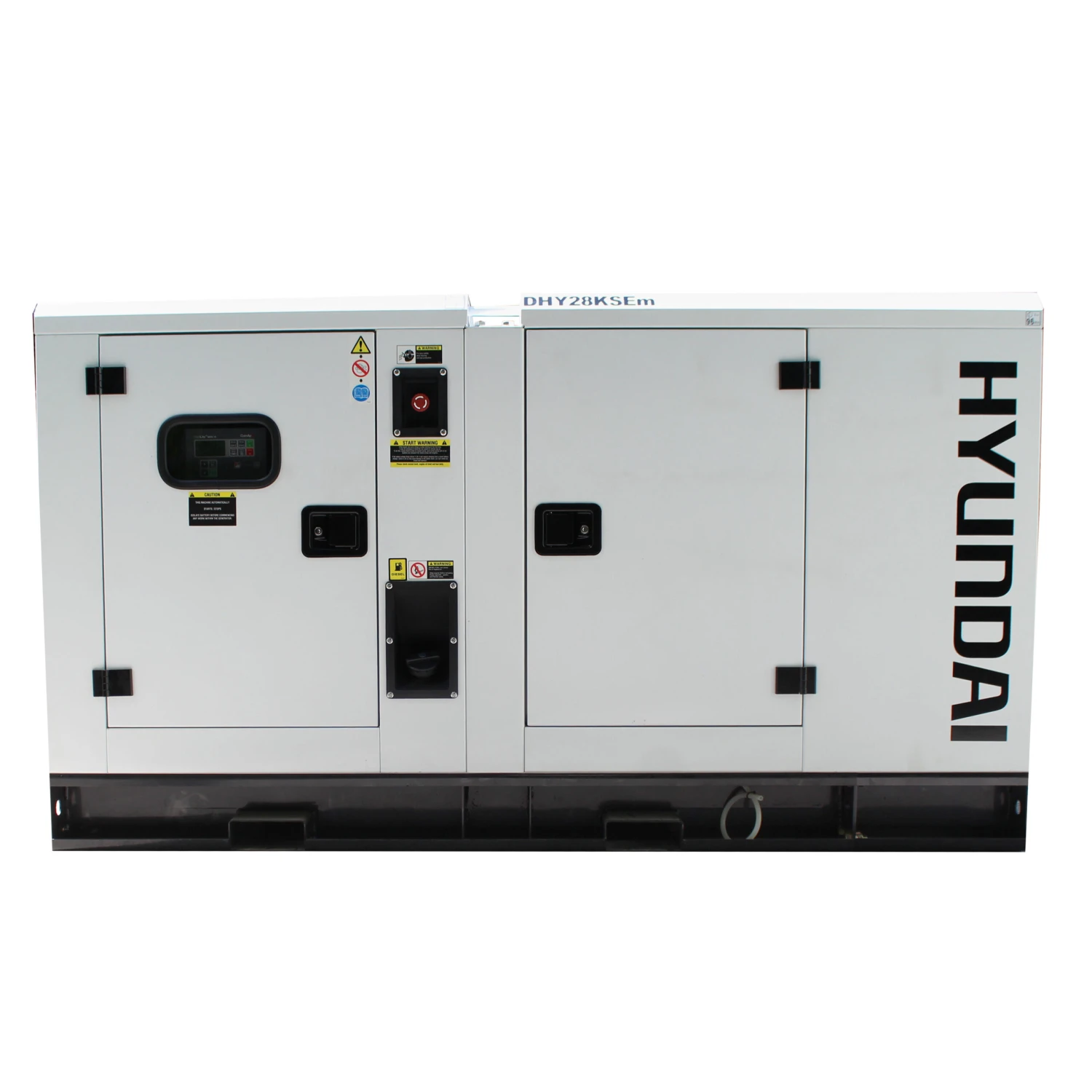

The DHY28KSEm is a single phase diesel generator which has a maximum output of 28kW/35kVA. It is a powerful choice of diesel generator for both emergency standby backup, just like it’s three-phase twin model the DHY28KSE. However, it can also be used as the sole supply of power if required and can be run daily without failure due to it’s increased lifespan. Inside the rigged, weather-proof canopy, there is a four cylinder, 4-stroke water- cooled, diesel engine which runs at very low rate of the revs.

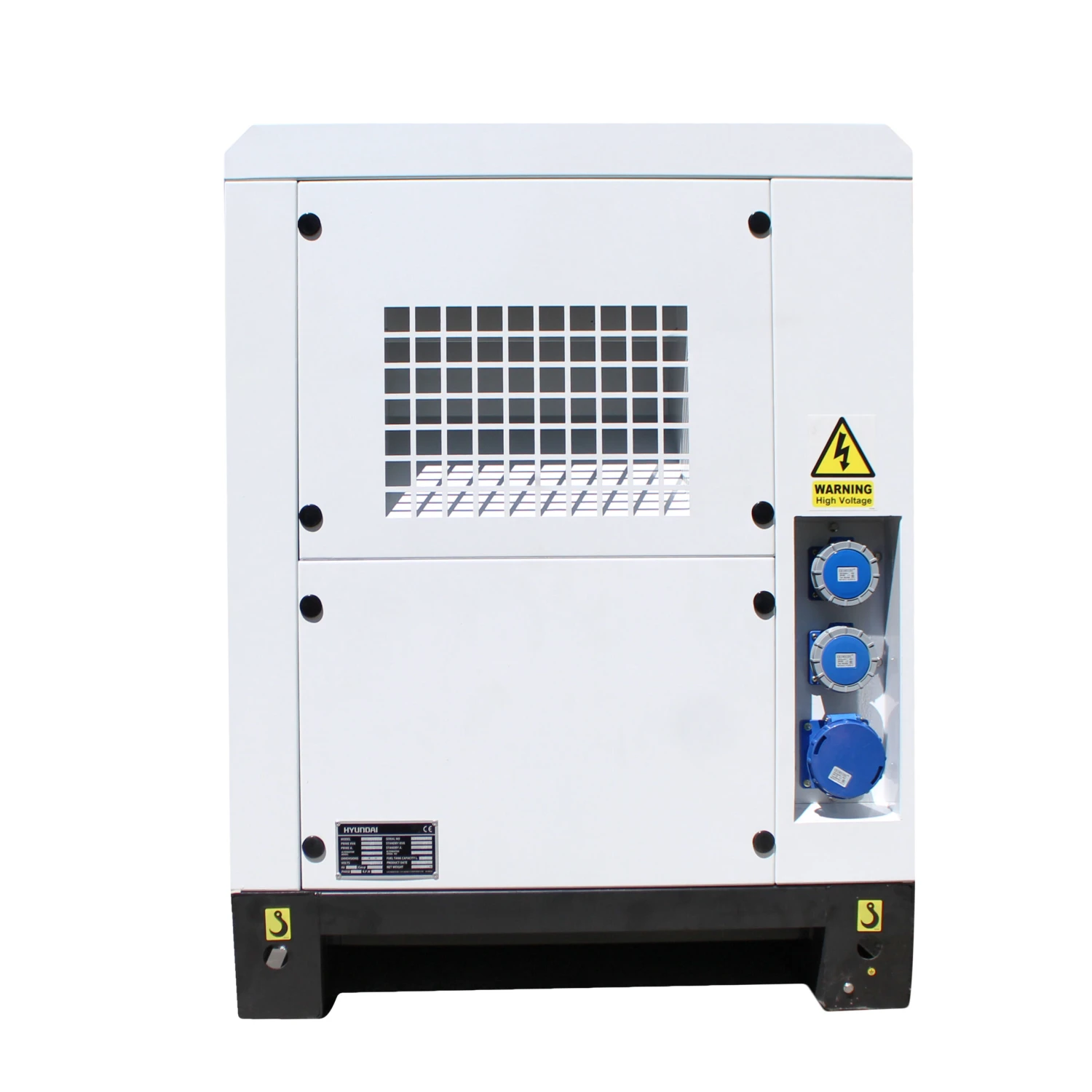

Featuring the slow running Hyundai 1500rpm engine which typically runs at half the rate of any normal diesel generator to better effect the lifespan and the economy during operation. The low-maintenance brushless AVR alternator provides a constant supply of smooth voltage waveform, meaning that any medium to large household or business that require a large amount of power will benefit from reliable and clean electricity to keep the lights on when they need it. The exterior housing is designed to keep ambient noise levels as low as possible as well as protecting the internals from the worst of the weather.

The digital control panel gives the operator total control over several variables, showing heads up operating parameters. The skidebase of the machine houses a 93 litre fuel tank as well as providing forklift holes for aiding transport and placement. Lifting eyelet lugs on the roof of the machine are also provided for lifting.

The DHY28KSEm comes ATS compatible, so can be connected to mains supply and an automatic transfer switch for a hassle-free experience during power failures.

Specifications:

• Max Power (kW/kVA): 28/35
• Frequency: 50
• Voltage(s): 230
• Controller: IL-NT MRS10
• ATS Port: IL-NT MRS10
• Battery (Ah): 1x12V-60Ah
• Fuel Capacity (L): 93
• Cooling Fluid Volume (L): 10
• Fuel Consumption (l/h): 5.2/9.3
• Engine Model: HY4102
• Power Output (hp): 32
• Rotate Speed: 1500 RPM
• Speed Regulation: MECHANICAL
• Displacement: 3857cc
• Oil Capacity (L): 15
• Alternator: AVR
• Power Factor (Cos?): 1
• Low Oil Pressure: Yes
• Block On Start-up: Yes
• Low Battery: Yes
• High Temperature On Water: Yes
• Low Oil Level: Yes
• Low Running On Engine: Yes
• Emergency Stop: Yes
• Noise @ 1m: 92
• Noise @ 7m: 65
• Weight: 970kg
• 2 Years manufactures warranty
