Hyundai DHY45KSE Silenced 3-Phase Diesel Generator 33kW/45kVA

Hyundai DHY45KSE Silenced 3-Phase Diesel Generator 33kW/45kVA

The Hyundai DHY45KSE is a three phase diesel generator with a maximum output of 33kW/45kVA. Designed for domestic or professional use, the DHY45KSE is powered by a 35hp 1500rpm diesel engine and is equipped an AVR alternator to produce clean energy. This means that any sensitive electronic equipment, such as televisions, PCs and laptops, can safely be powered by the DHY34KSE.

The DHY45KSE can be started manually by using the key, or connected to an ATS (Automatic Transfer Switch) system. An ATS system will automatically detect a loss of power from the mains, turn your DHY45KSE on automatically, and then turn it off again when power returns from the mains.

Housed in a weather-proof, silenced canopy, the DHY45KSE produces only 65dB @ 7 metres which makes it a quiet standby generator which won’t interrupt you at home or work.

All Hyundai 1500rpm diesel generator sound proof canopies undergo an anti-corrosion painting process called electrophoretic painting. This process ensures all areas of the canopy have an evenly applied thickness of paint, ensuring maximum corrosion protection.

The DHY45KSE benefits from being an economical diesel generator, capable of running on red diesel which is significantly cheaper than road diesel and is safer to store than petrol.

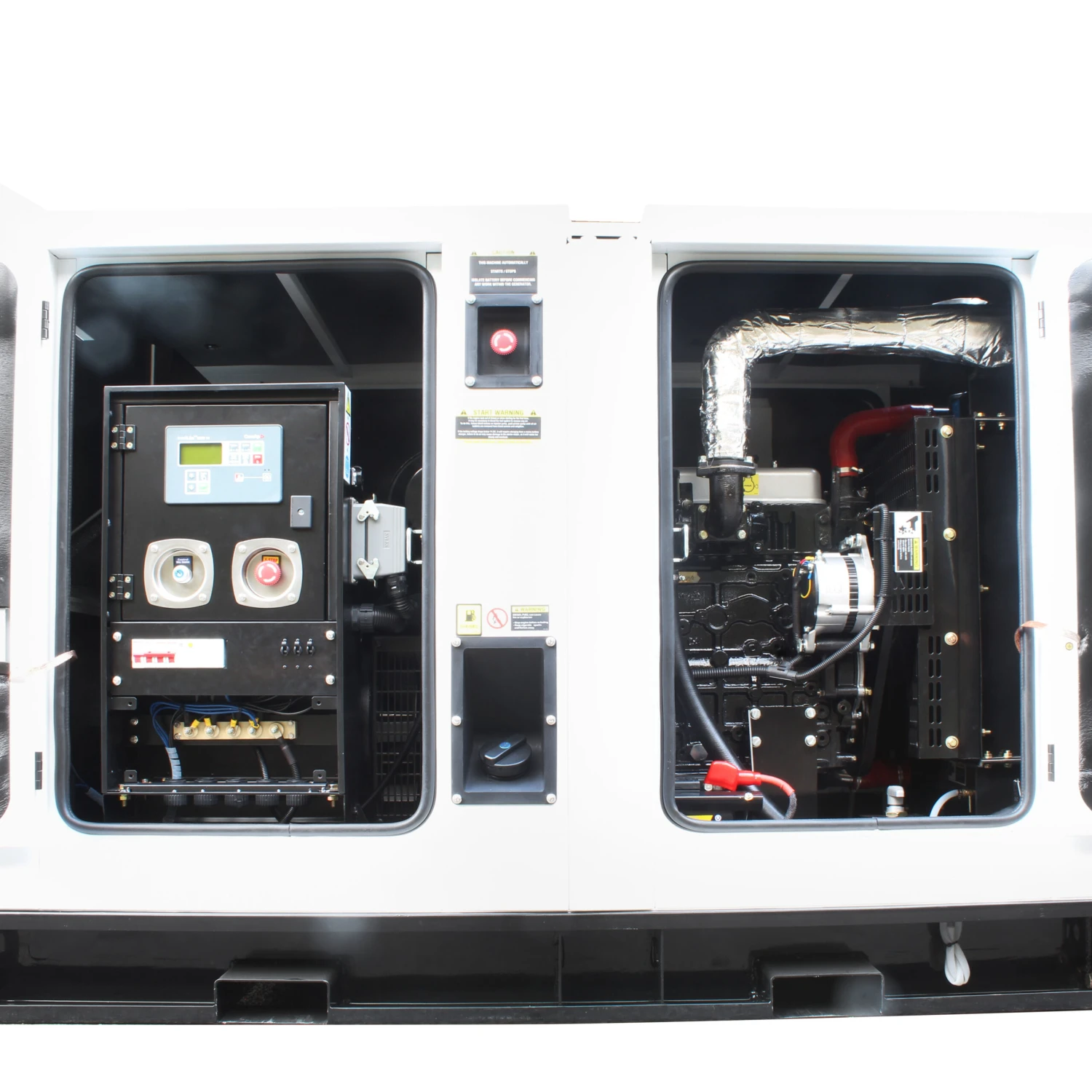

Fitted with an MRS 10 control panel interface as standard, its user friendly interface gives fingertip control over several operating parameters as well as providing information statistics relating to engine, output and generator running parameters.

Running at 1500rpm, the engine is stressed less than in 3000rpm generators and this helps extend the lifespan of the machine if properly serviced.

Specifications:

• Rated Power (kW/kVA): 32 / 40
• Max Power (kW/kVA): 33 / 45
• Frequency: 50
• Voltage(s): 230, 400
• Fuel Capacity (L): 93
• Cooling Fluid Volume (L): 25
• Fuel Consumption (l/h): 7.2 / 12.8
• Engine Model: HY4105
• Power Output (hp): 35
• Rotate Speed (rpm): 1500
• Displacement: 4100
• Oil Capacity (L): 9
• Alternator: AVR
• Power Factor (Cos?): 0.8
• Voltage Regulation: AVR
• Low Oil Pressure: Yes
• Block On Start-up: Yes
• Low Battery: Yes
• High Temperature On Water: Yes
• Low Oil Level: Yes
• Low Running On Engine: Yes
• Emergency Stop: Yes
• Noise @ 1m: 92
• Noise @ 7m: 65
• Weight: 1045kg
• 2 Years manufactures warranty
