Hyundai HYSC150300 Screw Air Compressor 54cfm 300-Litre 415v

Hyundai HYSC150300 Screw Air Compressor 54cfm 300-Litre 415v

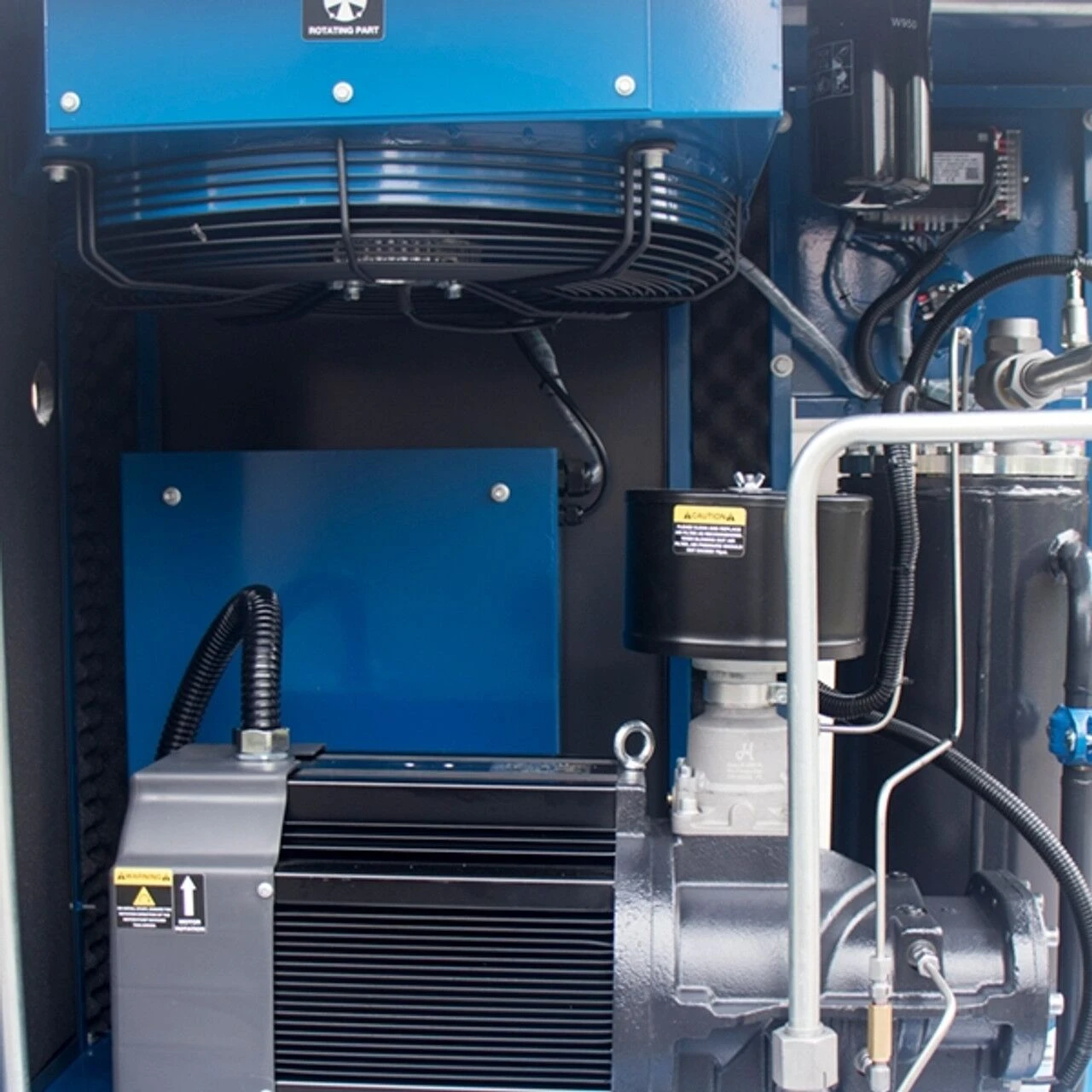

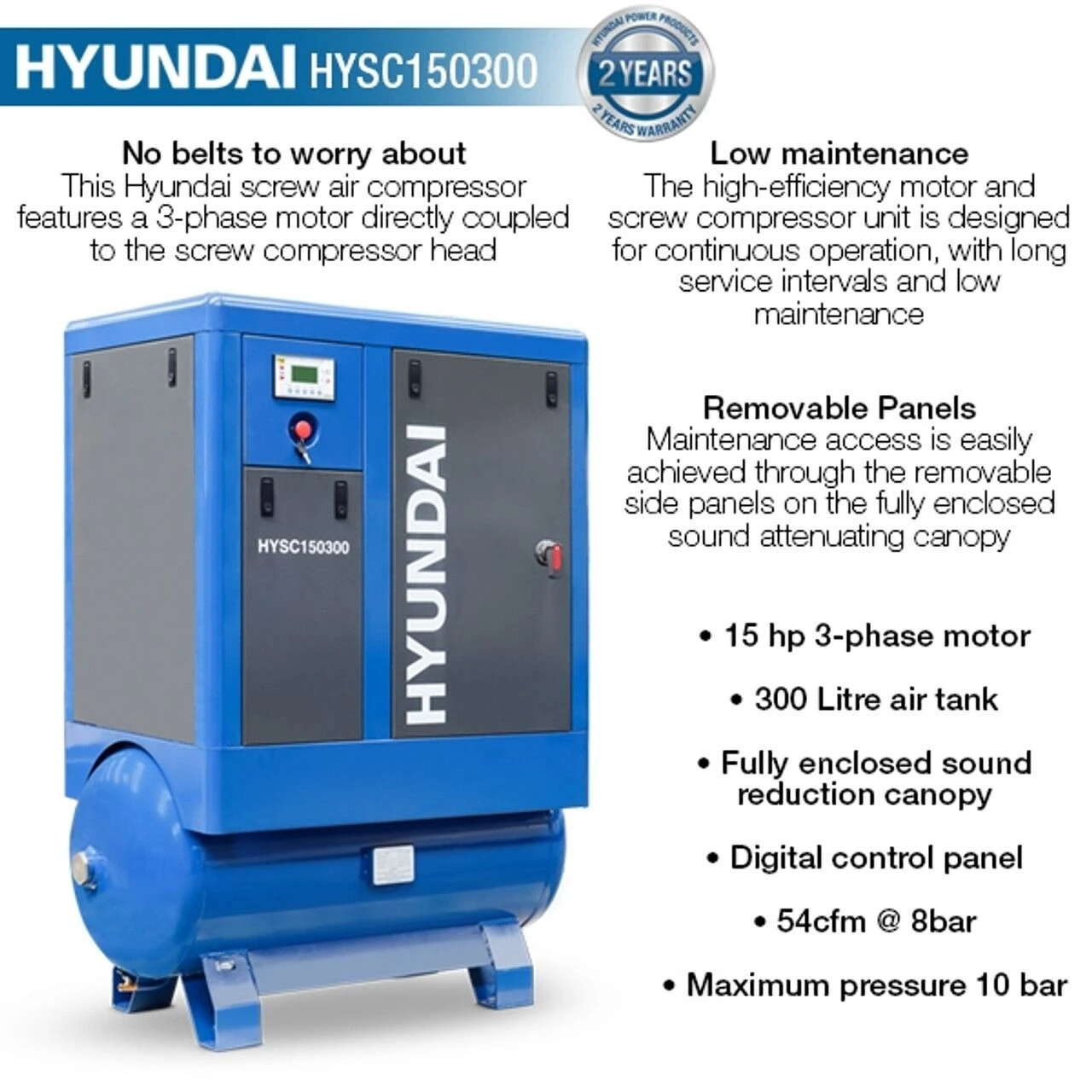

This Hyundai screw air compressor features a 300 litre tank, 15hp 3-phase motor directly coupled to the screw compressor head, so no belts to worry about.

The high-efficiency motor and screw compressor unit is designed for continuous operation, with long service intervals and low maintenance and features an integral air dryer to remove moisture entering the tank.

 Full maintenance access through easy to remove side panels on the fully enclosed sound attenuating canopy.The digital control panel monitors pressure, volts, amps, hours. The 350-Litre tank forklift transport holes, a 3/4in outlet fitting and water drain tap with CE certification to 12 bar.

Specifications:
–  Starting method: Electric.
–  Drive type: fixed speed direct drive.
–  Tank capacity: 300 litre.
–  Tank material: steel.
–  Cut-In pressure: 101.5psi /  7bar.
–  Cut-Out pressure: 116psi / 11.5bar.
–  Discharge pressure: 145psi / 10bar.
–  Max. pressure: 145psi / 110bar.
–  Air flow FAD: (L/min) 1510 @ 8 bar / 1377 @ 10 bar.
–  Air flow FAD:(CFM) 51 @ 8 bar / 44 @ 10 bar.
–  Air displacement: (L/min) 1590 @ 8 bar / 1450 @ 10 bar.
–  Air displacement:(CFM) 54 @ 8 bar / 46 @ 10 bar.
–  Rated power: 14kW.
–  Motor power: 11kW / 15hp.
–  Speed: 2960rpm.
–  Weight: 400kg.

Hyundai – New thinking, new possibilities!
