Sealey Mini Drilling & Milling Machine 240v

Sealey Mini Drilling & Milling Machine 240v

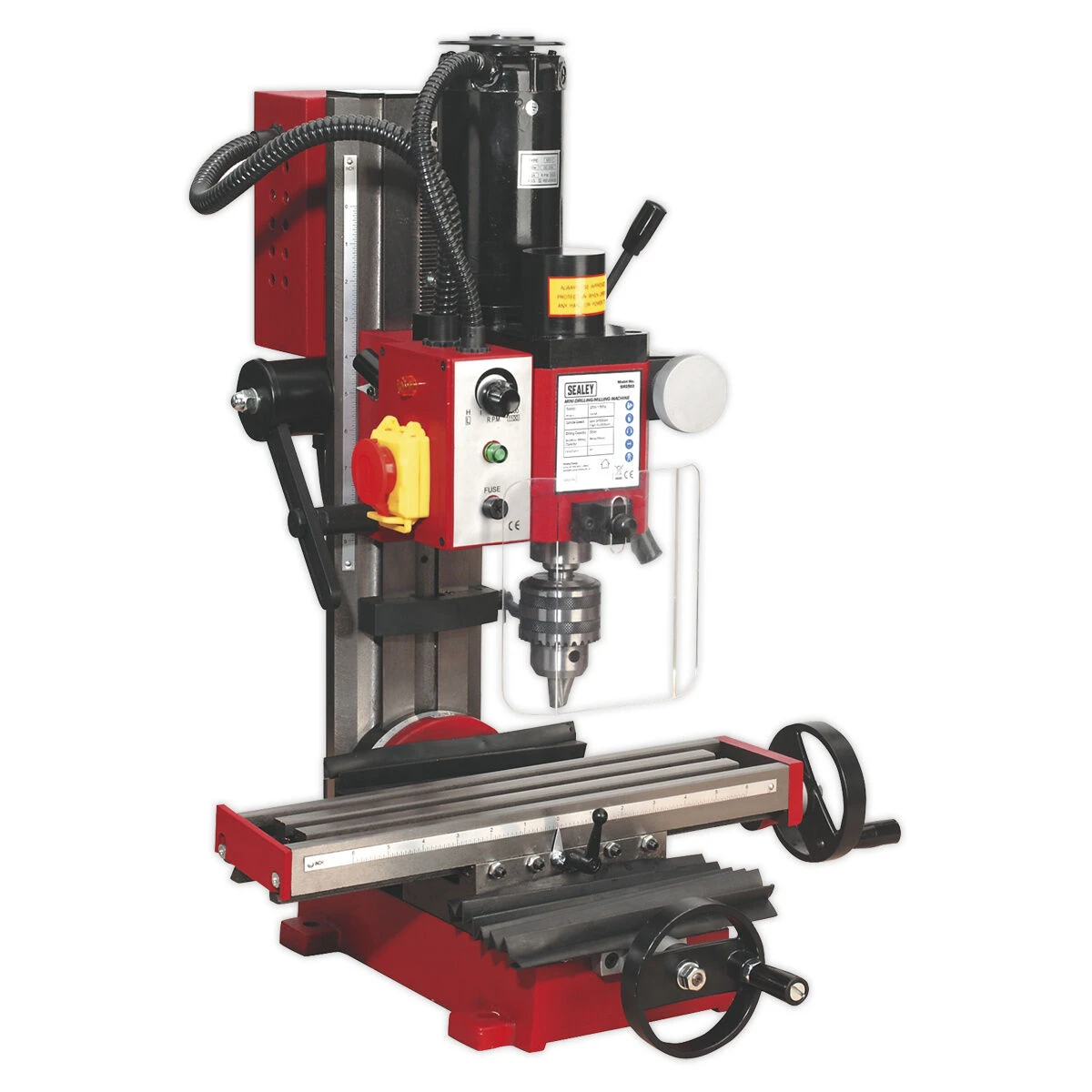

Bench mounting mini drilling/milling machine with the flexibility to handle most materials. Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and Metric graduated compound scales. The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45deg from vertical. Supplied with 13mm chuck accessory kit for adjusting and setting. An optional stand is available, order Model No. SM3002ST.

Features:
– Bench mounting mini drilling/milling machine with the flexibility to handle most materials.
– Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and Metric graduated compound scales.
– The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45deg from vertical.
– Supplied with 13mm chuck accessory kit for adjusting and setting.
– An optional stand is available, order Model No. SM3002ST.
– A comprehensive range of accessories also available.

Specifications:
– Model No: SM2502
– Cross Axis: 100mm
– Drilling Capacity (Chuck Size): 13mm
– End Mill Capacity: 16mm
– Face Mill Capacity: 30mm
– Headstock Travel: 180mm
– Longitudinal Axis: 220mm
– Motor Power: 350W
– Nett Weight: 68kg
– Spindle Nose Taper: MT3
– Spindle Speed – High Range: 0-2500rpm
– Spindle Speed – Low Range: 0-1100rpm
– Spindle Tilt Angle: ±45deg
– Supply: 240v

1 Year Manufacturers Warranty
